MAGNETA Program

Permanet Magnet Motor solutions for Artificial Lift Systems

Three different design for ALS; MAGNETA SRP PMM for Sucker Rod Pump Systems (SRP), MAGNETA PCP DH PMM for Progressive Cavity Pump Systems (PCP) and MAGNETA HPS MV PMM for Horizontal Pumping Systems (HPS).

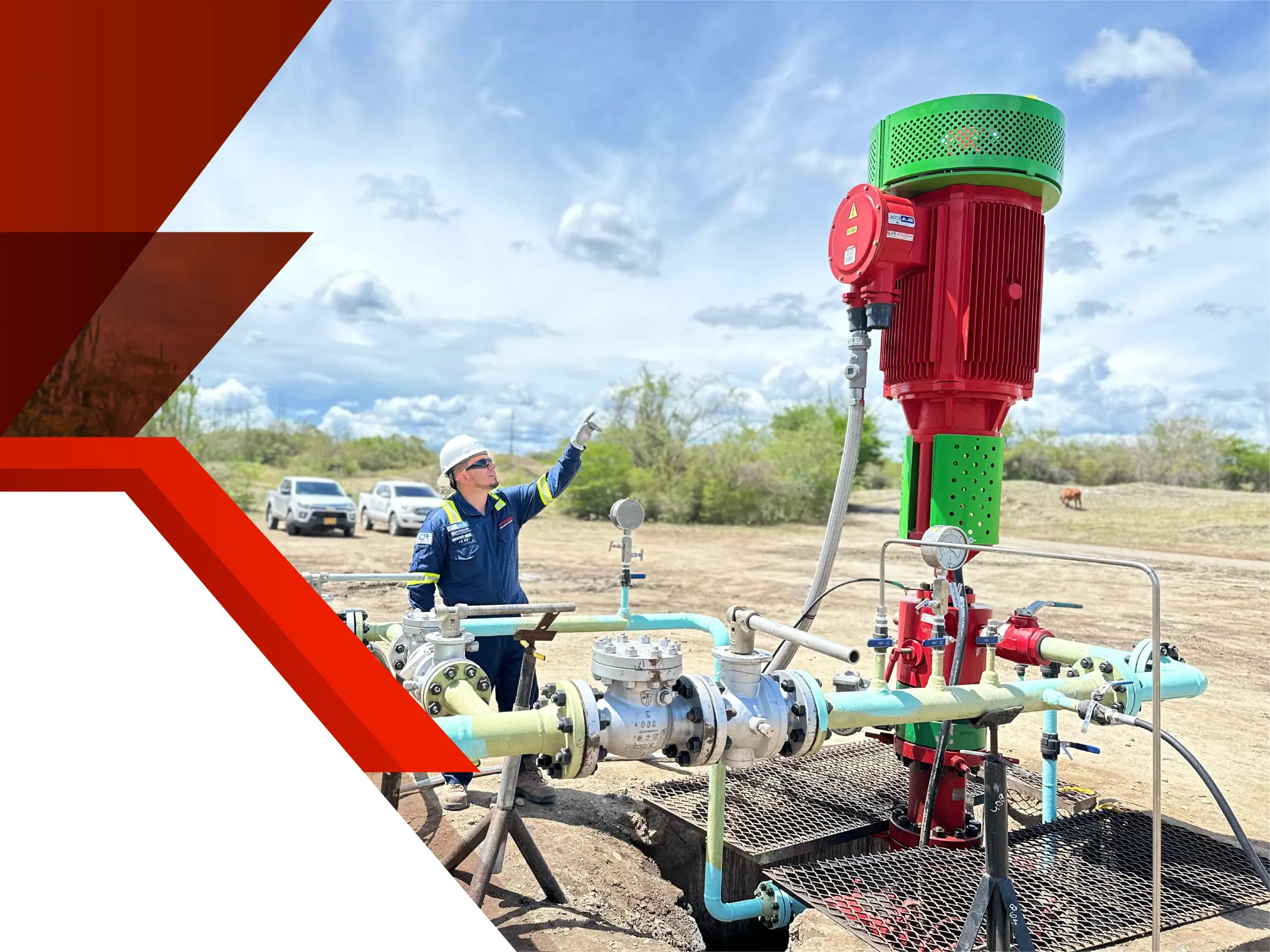

MAGNETA SRP
MAGNETA SRP PMM
Direct drive permanent magnet motor for sucker rod pump units higher efficiency, predictive maintenance ready.
Key specs (general)
  • Power: 50 / 60 / 75 / 100 HP
  • Efficiency: up to 96%
  • Power Factor: Close to 1.00
PDF
MAGNETA PCP
MAGNETA PCP DH PMM
Progressive Cavity Pump Drive Head with Mechanical Brake (MMB).
Key specs (general)
  • Power Range: 50 / 60 / 75 / 100 HP
  • Backspin Control: Mechanical Brake (MMB)
  • Efficiency: Up to 96%
PDF

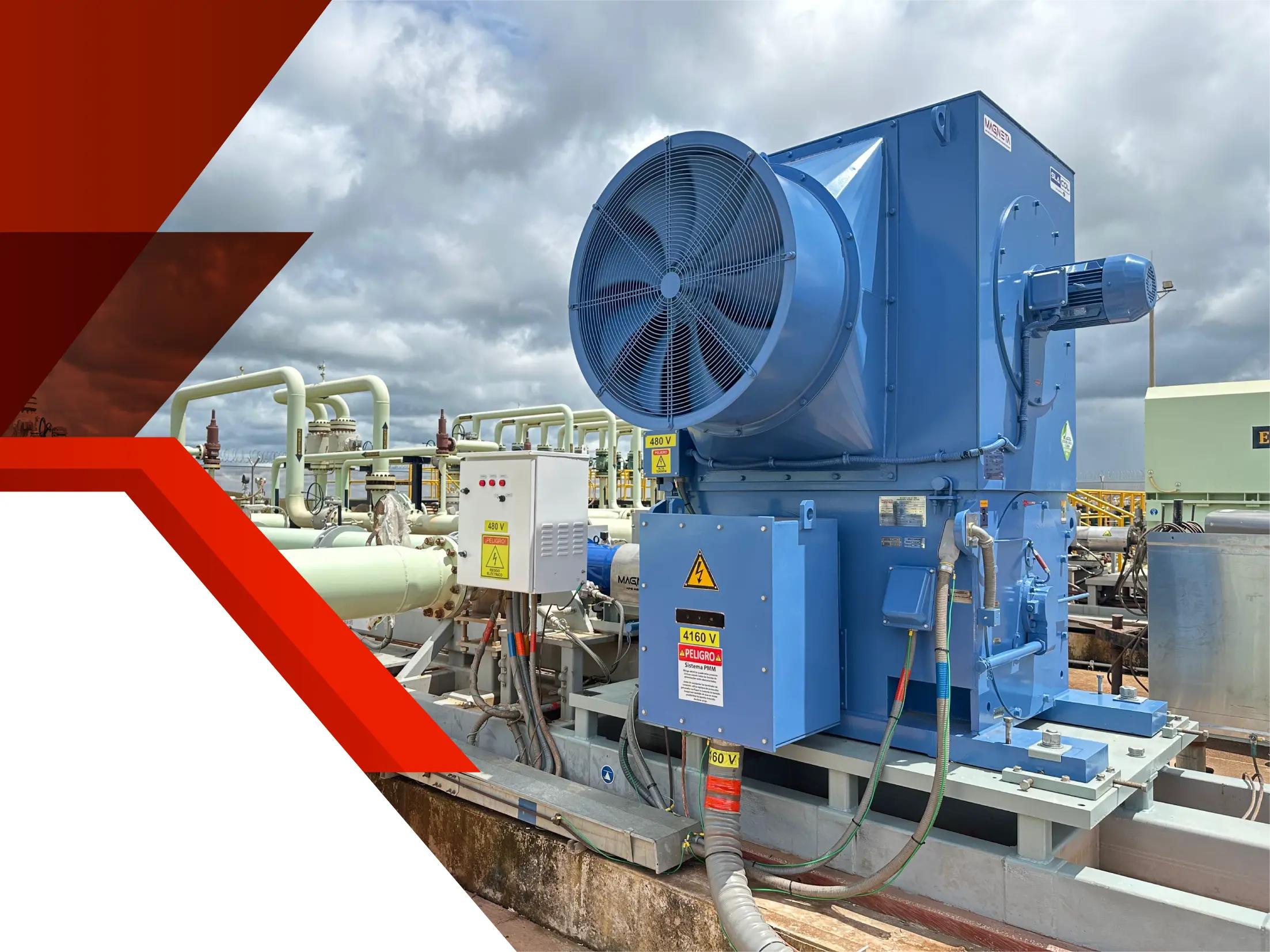

MAGNETA HPS
MAGNETA HPS MV PMM
Medium Voltage PMM motor for Horizontal Pumping Systems.
Key specs (general)
  • Power: 300 HP up to 14,600 HP
  • Voltage: 2.3 kV up to 34.5 kV
  • Application: For injection process, transfer process or gas compression
PDF
